Encapsulates access to the ENC28J60 hardware. More...

#include <ENC28J60.h>

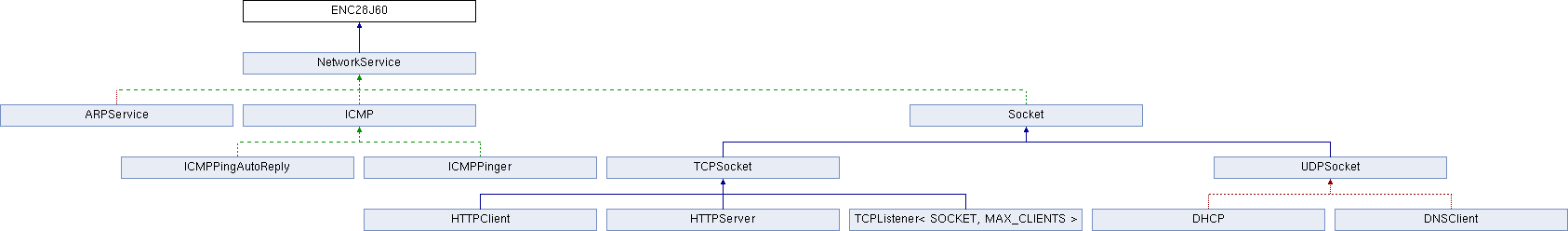

Inheritance diagram for ENC28J60:

Static Public Member Functions
static bool	isLinkUp ()
	Determines whether the network link is ready More...

Static Protected Member Functions
static void	writeByte (byte b)

static void	writeByte (uint16_t dst, byte b)

static void	writeBuf (uint16_t dst, uint16_t len, const byte *data)

static void	writeBuf (uint16_t len, const byte *data)

static uint16_t	hardwareChecksum (uint16_t src, uint16_t len)

static uint16_t	hardwareChecksumRxOffset (uint16_t offset, uint16_t len)

static void	moveMem (uint16_t dest, uint16_t src, uint16_t len)

static void	readBuf (uint16_t src, uint16_t len, byte *data)

static void	readBuf (uint16_t len, byte *data)

static byte	readByte (uint16_t src)

static void	packetSend (uint16_t len)

static void	packetSend (uint16_t len, const byte *data)

static void	loadSample ()

static void	loadAll ()

static void	release ()

static uint8_t	begin (uint8_t cspin)

static void	loop ()

static void	enableBroadcast ()

Friends
class	SharedBuffer

Detailed Description

Encapsulates access to the ENC28J60 hardware.

Low-level class to access hardware functions

Definition at line 37 of file ENC28J60.h.

Member Function Documentation

uint8_t ENC28J60::begin ( uint8_t cspin )

staticprotected

Definition at line 310 of file ENC28J60.cpp.

void ENC28J60::enableBroadcast ( )

staticprotected

Definition at line 281 of file ENC28J60.cpp.

static uint16_t ENC28J60::hardwareChecksum	(	uint16_t	src,
		uint16_t	len
	)

staticprotected

static uint16_t ENC28J60::hardwareChecksumRxOffset	(	uint16_t	offset,
		uint16_t	len
	)

staticprotected

bool ENC28J60::isLinkUp ( )

static

Determines whether the network link is ready

Returns

Definition at line 306 of file ENC28J60.cpp.

void ENC28J60::loadAll ( )

staticprotected

Definition at line 400 of file ENC28J60.cpp.

void ENC28J60::loadSample ( )

staticprotected

Definition at line 367 of file ENC28J60.cpp.

static void ENC28J60::loop ( )

staticprotected

void ENC28J60::moveMem	(	uint16_t	dest,
		uint16_t	src,
		uint16_t	len
	)

staticprotected

Definition at line 198 of file ENC28J60.cpp.

void ENC28J60::packetSend ( uint16_t len )

staticprotected

Definition at line 256 of file ENC28J60.cpp.

void ENC28J60::packetSend	(	uint16_t	len,
		const byte *	data
	)

staticprotected

Definition at line 275 of file ENC28J60.cpp.

void ENC28J60::readBuf	(	uint16_t	src,
		uint16_t	len,
		byte *	data
	)

staticprotected

Definition at line 109 of file ENC28J60.cpp.

void ENC28J60::readBuf	(	uint16_t	len,
		byte *	data
	)

staticprotected

Definition at line 102 of file ENC28J60.cpp.

byte ENC28J60::readByte ( uint16_t src )

staticprotected

Definition at line 139 of file ENC28J60.cpp.

void ENC28J60::release ( )

staticprotected

Definition at line 410 of file ENC28J60.cpp.

void ENC28J60::writeBuf	(	uint16_t	dst,
		uint16_t	len,
		const byte *	data
	)

staticprotected

Definition at line 123 of file ENC28J60.cpp.

void ENC28J60::writeBuf	(	uint16_t	len,
		const byte *	data
	)

staticprotected

Definition at line 115 of file ENC28J60.cpp.

void ENC28J60::writeByte ( byte b )

staticprotected

Definition at line 130 of file ENC28J60.cpp.

void ENC28J60::writeByte	(	uint16_t	dst,
		byte	b
	)

staticprotected

Definition at line 134 of file ENC28J60.cpp.

Friends And Related Function Documentation

friend class SharedBuffer

friend

Definition at line 39 of file ENC28J60.h.

The documentation for this class was generated from the following files:

/home/jander/temp/etherdune/ENC28J60.h
/home/jander/temp/etherdune/ENC28J60.cpp
