Stateful Class Reference

Maintains a state variable and allows to pull out a state string representation for debugging. More...

#include <Stateful.h>

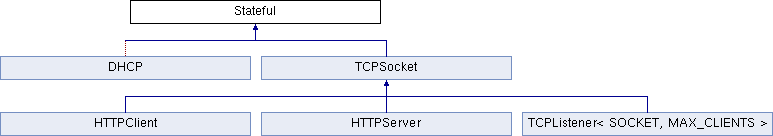

Inheritance diagram for Stateful:

Public Member Functions
uint8_t	getState ()

Protected Member Functions
void	setState (uint8_t newState, uint8_t timeout)
	Changes to a new state More...

Protected Attributes
uint8_t	stateTimer
	state timer, in ticks More...
uint8_t	state
	state code More...

Detailed Description

Maintains a state variable and allows to pull out a state string representation for debugging.

Complements other classes by adding a state variable and providing a way to obtain a string representation of the current state when debugging. This class also allows to keep a timer variable associated with the state in case the state has to time out.

Definition at line 31 of file Stateful.h.

Member Function Documentation

uint8_t Stateful::getState ( )

inline

Definition at line 41 of file Stateful.h.

void Stateful::setState ( uint8_t  newState, uint8_t  timeout  )

protected

Changes to a new state

Parameters

newState	The new state.
timeout	The timeout, in ticks

Definition at line 28 of file Stateful.cpp.

Member Data Documentation

uint8_t Stateful::state

protected

state code

Definition at line 35 of file Stateful.h.

uint8_t Stateful::stateTimer

protected

state timer, in ticks

Definition at line 34 of file Stateful.h.

---

The documentation for this class was generated from the following files:

• /home/jander/temp/etherdune/Stateful.h
• /home/jander/temp/etherdune/Stateful.cpp
