Base class for TCP and UDP sockets. More...

#include <Socket.h>

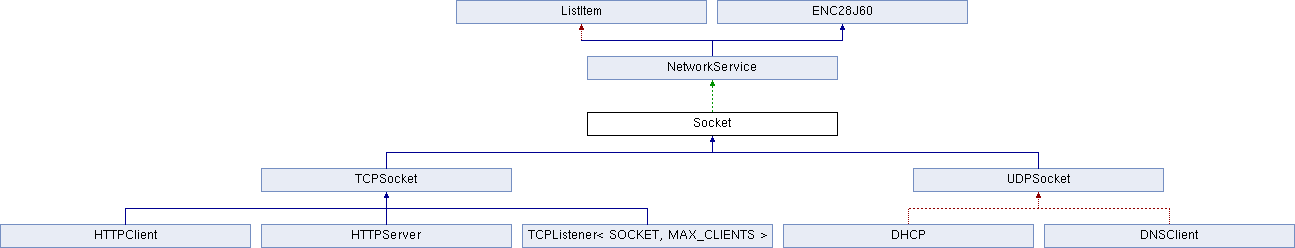

Inheritance diagram for Socket:

Public Member Functions
uint16_t	write (uint16_t len, const byte *data)
	In the case of TCP, writes the given data buffer to the socket. More...

uint16_t	write (const String &s)
	In the case of TCP, writes the given String to the socket, not including the null-terminating character. More...

uint16_t	write (const __FlashStringHelper *pattern,...)
	Writes out the specified PROGMEM string that may contain the % escape character. More...

template<class T >
uint16_t	write (const T &message)
	Writes out the binary representation of the parameter to the socket. More...

Public Attributes
nint16_t	remotePort
	remote TCP or UDP port More...

nint16_t	localPort
	local TCP or UDP port More...

IPAddress	remoteIP
	remote IP address to connect to (TCP) or send the next packet to (UDP) More...

Protected Member Functions
void	prepareIPPacket ()

Protected Member Functions inherited from NetworkService
	NetworkService ()

	~NetworkService ()

virtual bool	onPacketReceived ()=0
	Called every time a packet is received. More...

virtual void	tick ()
	This is a timer function that is called every NETWORK_TIMER_RESOLUTION milliseconds on every service. More...

virtual void	onDNSResolve (uint8_t status, uint16_t identification, const IPAddress &ip)
	Called on each network service every time a DNS response is received. More...

Static Protected Member Functions
static uint16_t	calcPseudoHeaderChecksum (uint8_t protocol, uint16_t length)
	Calculates the TCP or UDP pseudo header checksum. More...

static uint16_t	calcTCPChecksum (bool options, uint16_t dataLength, uint16_t dataChecksum)
	Calculates the TCP checksum. More...

static uint16_t	calcUDPChecksum (uint16_t dataLength, uint16_t dataChecksum)
	Calculates the UDP checksum. More...

static bool	verifyUDPTCPChecksum ()
	Verifies if the UDP or TCP checksum of the current packet is correct. More...

Static Protected Member Functions inherited from NetworkService
static bool	sendIPPacket (uint16_t length)
	Puts the current in-memory packet in the network More...

static void	prepareIPPacket (const IPAddress &remoteIP)
	Sets up common IP header values for all outgoing IP packets and calculates the IP header checksum More...

static bool	sameLAN (IPAddress &dst)
	Determines whether the given IP is in the same subnet as localIP More...

static bool	begin (uint8_t cspin)
	Initializes EtherDune and the underlying hardware More...

static void	loop ()
	Gives processing time to EtherDune so that it can check for incoming packets or send queued packets. More...

static DNSClient &	DNS ()
	Obtains access to the DNS service singleton instance. More...

Static Protected Member Functions inherited from ENC28J60
static void	writeByte (byte b)

static void	writeByte (uint16_t dst, byte b)

static void	writeBuf (uint16_t dst, uint16_t len, const byte *data)

static void	writeBuf (uint16_t len, const byte *data)

static uint16_t	hardwareChecksum (uint16_t src, uint16_t len)

static uint16_t	hardwareChecksumRxOffset (uint16_t offset, uint16_t len)

static void	moveMem (uint16_t dest, uint16_t src, uint16_t len)

static void	readBuf (uint16_t src, uint16_t len, byte *data)

static void	readBuf (uint16_t len, byte *data)

static byte	readByte (uint16_t src)

static void	packetSend (uint16_t len)

static void	packetSend (uint16_t len, const byte *data)

static void	loadSample ()

static void	loadAll ()

static void	release ()

static uint8_t	begin (uint8_t cspin)

static void	loop ()

static void	enableBroadcast ()

static bool	isLinkUp ()
	Determines whether the network link is ready More...

Protected Attributes
SharedBuffer	buffer
	output buffer for this socket More...

Static Protected Attributes
static uint8_t	srcPort_L_count = 0
	self-incrementing counter for local ports. More...

Static Protected Attributes inherited from NetworkService
static EthBuffer	packet
	in-memory packet buffer currently being processed. More...

static ARPService	ARP
	ARP singleton instance. More...

static MACAddress	localMAC
	Ethernet MAC address. More...

static IPAddress	localIP = { 0, 0, 0, 0 }
	IP address of this application. More...

static IPAddress	gatewayIP = { 0, 0, 0, 0 }
	IP address of the gateway in this network. More...

static IPAddress	netmask = { 0, 0, 0, 0 }
	Subnet mask. More...

static IPAddress	dnsIP = { 0, 0, 0, 0 }
	IP address of the DNS server to use. More...

Detailed Description

Base class for TCP and UDP sockets.

Definition at line 37 of file Socket.h.

Member Function Documentation

uint16_t Socket::calcPseudoHeaderChecksum	(	uint8_t	protocol,
		uint16_t	length
	)

staticprotected

Calculates the TCP or UDP pseudo header checksum.

Parameters

protocol	protocol code, either IP_PROTO_TCP or IP_PROTO_UDP
length	Total length of the frame: UDP/TCP header and data

Returns: The calculated checksum

See more about the TCP/UDP pseudo header checksum here: http://en.wikipedia.org/wiki/Transmission_Control_Protocol#Checksum_computation

Definition at line 158 of file Socket.cpp.

uint16_t Socket::calcTCPChecksum	(	bool	options,
		uint16_t	dataLength,
		uint16_t	dataChecksum
	)

staticprotected

Calculates the TCP checksum.

Parameters

options	if set to `true`, considers extra size of a 2 byte length option, used in EtherDune to establish the MSS
dataLength	Length of the payload
dataChecksum	Checksum of the payload

Returns: The calculated checksum of the TCP segment

Definition at line 177 of file Socket.cpp.

uint16_t Socket::calcUDPChecksum	(	uint16_t	dataLength,
		uint16_t	dataChecksum
	)

staticprotected

Calculates the UDP checksum.

Parameters

dataLength	Length of the payload.
dataChecksum	Checksum of the payload

Returns: The calculated checksum of the UDP datagram

Definition at line 192 of file Socket.cpp.

void Socket::prepareIPPacket ( )

protected

Definition at line 27 of file Socket.cpp.

bool Socket::verifyUDPTCPChecksum ( )

staticprotected

Verifies if the UDP or TCP checksum of the current packet is correct.

Returns: true if the checksum is correct, false otherwise

Definition at line 205 of file Socket.cpp.

uint16_t Socket::write	(	uint16_t	len,
		const byte *	data
	)

In the case of TCP, writes the given data buffer to the socket.

For UDP sockets, appends the given data buffer to the current packet being built

Parameters

len	length of the data buffer
data	pointer to the data to send

Returns: Number of bytes written

Definition at line 54 of file Socket.cpp.

uint16_t Socket::write ( const String & s )

In the case of TCP, writes the given String to the socket, not including the null-terminating character.

For UDP sockets, appends the given String to the current packet being built, not including the null-terminating character.

Parameters

s	String to write out

Returns: Number of bytes written

Definition at line 70 of file Socket.cpp.

uint16_t Socket::write	(	const __FlashStringHelper *	pattern,
			...
	)

Writes out the specified PROGMEM string that may contain the % escape character.

For each % found, the next argument in the variable arguments list is output instead. Variable arguments must be of type String*. To actually write a %, put two %%.

Parameters

pattern	Pattern PROGMEM string. You can produce this string by using the F() macro
...	Optional substitution String* pointers, one for each % in the pattern string

Returns: Number of bytes written

String status(200);
String statusMessage(F("OK"));
String contentType(F("text/html"));
String message(F("Hello World!"));
socket.write(F("HTTP % %\r\nContent-Type:%\r\n\r\n<html><body><h1>%</h1></body></html>"),
    &status, &statusMessage, &contentType, &message);

Output:

HTTP 200 OK
Content-Type:text/html
<html><body><h1>Hello World!</h1></body></html>

Definition at line 103 of file Socket.cpp.

template<class T >

uint16_t Socket::write ( const T & message )

inline

Writes out the binary representation of the parameter to the socket.

If used with a null-terminated string constant, it will output the string including the null-terminating character \0.

If used with datatypes such as int, it will output the actual binary representation of an integer, not the ASCII visual representation of it.

Useful to serialize structs or complex types for sending.

See UDPClientDemo_NTPClient.ino for an example usage

Parameters

message The message.

Returns: Number of bytes written

struct
{
  int status;
  byte code;
} message;
message.status = 200;
message.code = 10;
socket.write(message);

Definition at line 87 of file Socket.h.

Member Data Documentation

SharedBuffer Socket::buffer

protected

output buffer for this socket

Definition at line 42 of file Socket.h.

nint16_t Socket::localPort

local TCP or UDP port

Definition at line 54 of file Socket.h.

IPAddress Socket::remoteIP

remote IP address to connect to (TCP) or send the next packet to (UDP)

Definition at line 55 of file Socket.h.

nint16_t Socket::remotePort

remote TCP or UDP port

Definition at line 53 of file Socket.h.

uint8_t Socket::srcPort_L_count = 0

staticprotected

self-incrementing counter for local ports.

Definition at line 43 of file Socket.h.

The documentation for this class was generated from the following files:

/home/jander/temp/etherdune/Socket.h
/home/jander/temp/etherdune/Socket.cpp
