TCPListener< SOCKET, MAX_CLIENTS > Class Template Reference

Maintains a list of available sockets, also listening and spawning sockets to serve multiple clients simultaneously. More...

#include <TCPListener.h>

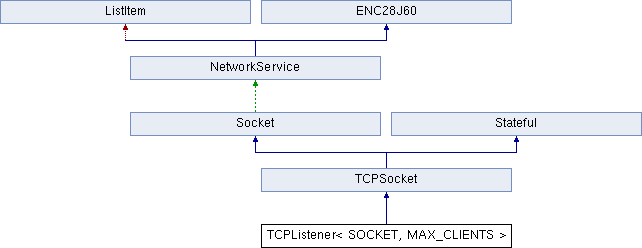

Inheritance diagram for TCPListener< SOCKET, MAX_CLIENTS >:

Public Member Functions
void	listen (uint16_t port)
	Starts to listen on the specified TCP port. More...
Public Member Functions inherited from TCPSocket
	TCPSocket ()
void	connect ()
	Initiates a TCP connection to remoteIP and remotePort. More...
void	close ()
	Attempts to gracefully close a connection. More...
void	terminate ()
	Immediately shuts down the socket and makes it available for a new task. More...
void	listen ()
	Starts listening on the local port indicated by the localPort property. More...
void	accept ()
	Accepts a connection request that has been received on the port this instance was listening on More...
void	accept (TCPSocket &listener)
	Accepts a connection request that was sent to another TCPSocket instance. More...
void	push ()
	Sets the PSH TCP flag and also sends data in the outgoing buffer immediately. More...
virtual void	onConnect ()
	Fires when the socket connection is established. More...
virtual void	onClose ()
	Fires when the other party closed the incoming end of the connection because it has no more data to send. More...
virtual void	onReceive (uint16_t len, const byte *data)
	Called for each data packet received More...
Public Member Functions inherited from Socket
uint16_t	write (uint16_t len, const byte *data)
	In the case of TCP, writes the given data buffer to the socket. More...
uint16_t	write (const String &s)
	In the case of TCP, writes the given String to the socket, not including the null-terminating character. More...
uint16_t	write (const __FlashStringHelper *pattern,...)
	Writes out the specified PROGMEM string that may contain the % escape character. More...
template<class T >
uint16_t	write (const T &message)
	Writes out the binary representation of the parameter to the socket. More...
Public Member Functions inherited from Stateful
uint8_t	getState ()

Protected Member Functions
virtual void	onNoMoreConnections ()
	Called when there are no more sockets available More...
void	onTerminate ()
	Called when the socket is ready to be reused. More...
void	onConnectRequest ()
	Called when a listening socket receives a connection request. More...
Protected Member Functions inherited from Socket
void	prepareIPPacket ()
Protected Member Functions inherited from NetworkService
	NetworkService ()
	~NetworkService ()
virtual void	onDNSResolve (uint8_t status, uint16_t identification, const IPAddress &ip)
	Called on each network service every time a DNS response is received. More...
Protected Member Functions inherited from Stateful
void	setState (uint8_t newState, uint8_t timeout)
	Changes to a new state More...

Protected Attributes
SOCKET	clients [MAX_CLIENTS]
Protected Attributes inherited from Socket
SharedBuffer	buffer
	output buffer for this socket More...
Protected Attributes inherited from Stateful
uint8_t	stateTimer
	state timer, in ticks More...
uint8_t	state
	state code More...

Additional Inherited Members
Public Attributes inherited from Socket
nint16_t	remotePort
	remote TCP or UDP port More...
nint16_t	localPort
	local TCP or UDP port More...
IPAddress	remoteIP
	remote IP address to connect to (TCP) or send the next packet to (UDP) More...
Static Protected Member Functions inherited from Socket
static uint16_t	calcPseudoHeaderChecksum (uint8_t protocol, uint16_t length)
	Calculates the TCP or UDP pseudo header checksum. More...
static uint16_t	calcTCPChecksum (bool options, uint16_t dataLength, uint16_t dataChecksum)
	Calculates the TCP checksum. More...
static uint16_t	calcUDPChecksum (uint16_t dataLength, uint16_t dataChecksum)
	Calculates the UDP checksum. More...
static bool	verifyUDPTCPChecksum ()
	Verifies if the UDP or TCP checksum of the current packet is correct. More...
Static Protected Member Functions inherited from NetworkService
static bool	sendIPPacket (uint16_t length)
	Puts the current in-memory packet in the network More...
static void	prepareIPPacket (const IPAddress &remoteIP)
	Sets up common IP header values for all outgoing IP packets and calculates the IP header checksum More...
static bool	sameLAN (IPAddress &dst)
	Determines whether the given IP is in the same subnet as localIP More...
static bool	begin (uint8_t cspin)
	Initializes EtherDune and the underlying hardware More...
static void	loop ()
	Gives processing time to EtherDune so that it can check for incoming packets or send queued packets. More...
static DNSClient &	DNS ()
	Obtains access to the DNS service singleton instance. More...
Static Protected Member Functions inherited from ENC28J60
static void	writeByte (byte b)
static void	writeByte (uint16_t dst, byte b)
static void	writeBuf (uint16_t dst, uint16_t len, const byte *data)
static void	writeBuf (uint16_t len, const byte *data)
static uint16_t	hardwareChecksum (uint16_t src, uint16_t len)
static uint16_t	hardwareChecksumRxOffset (uint16_t offset, uint16_t len)
static void	moveMem (uint16_t dest, uint16_t src, uint16_t len)
static void	readBuf (uint16_t src, uint16_t len, byte *data)
static void	readBuf (uint16_t len, byte *data)
static byte	readByte (uint16_t src)
static void	packetSend (uint16_t len)
static void	packetSend (uint16_t len, const byte *data)
static void	loadSample ()
static void	loadAll ()
static void	release ()
static uint8_t	begin (uint8_t cspin)
static void	loop ()
static void	enableBroadcast ()
static bool	isLinkUp ()
	Determines whether the network link is ready More...
Static Protected Attributes inherited from Socket
static uint8_t	srcPort_L_count = 0
	self-incrementing counter for local ports. More...
Static Protected Attributes inherited from NetworkService
static EthBuffer	packet
	in-memory packet buffer currently being processed. More...
static ARPService	ARP
	ARP singleton instance. More...
static MACAddress	localMAC
	Ethernet MAC address. More...
static IPAddress	localIP = { 0, 0, 0, 0 }
	IP address of this application. More...
static IPAddress	gatewayIP = { 0, 0, 0, 0 }
	IP address of the gateway in this network. More...
static IPAddress	netmask = { 0, 0, 0, 0 }
	Subnet mask. More...
static IPAddress	dnsIP = { 0, 0, 0, 0 }
	IP address of the DNS server to use. More...

Detailed Description

template<class SOCKET, uint8_t MAX_CLIENTS>
class TCPListener< SOCKET, MAX_CLIENTS >

Maintains a list of available sockets, also listening and spawning sockets to serve multiple clients simultaneously.

This class starts a listening socket that accepts all connection requests and tries to assign the workload of serving each request to an available socket.

The template takes two parameters:

SOCKET: a type that is expected to derive from TCPSocket MAX_CLIENTS: maximum number of simultaneous connections to accomodate. TCPListener will statically allocate an array of MAX_CLIENT instances of SOCKET, so size MAX_CLIENTS carefully.

Each time a new connection is established, onConnect() will be called on the corresponding SOCKET instance.

See HTTPServerDemo_MultipleClients.ino for a working example. Compare with HTTPServerDemo.ino to see the difference

Definition at line 45 of file TCPListener.h.

Member Function Documentation

template<class SOCKET, uint8_t MAX_CLIENTS>

void TCPListener< SOCKET, MAX_CLIENTS >::listen ( uint16_t  port )

inline

Starts to listen on the specified TCP port.

Parameters

port	The port to listen on

Definition at line 83 of file TCPListener.h.

template<class SOCKET, uint8_t MAX_CLIENTS>

void TCPListener< SOCKET, MAX_CLIENTS >::onConnectRequest ( )

inlineprotectedvirtual

Called when a listening socket receives a connection request.

To accept the connection request, call accept()

Reimplemented from TCPSocket.

Definition at line 60 of file TCPListener.h.

template<class SOCKET, uint8_t MAX_CLIENTS>

virtual void TCPListener< SOCKET, MAX_CLIENTS >::onNoMoreConnections ( )

inlineprotectedvirtual

Called when there are no more sockets available

Definition at line 52 of file TCPListener.h.

template<class SOCKET, uint8_t MAX_CLIENTS>

void TCPListener< SOCKET, MAX_CLIENTS >::onTerminate ( )

inlineprotectedvirtual

Called when the socket is ready to be reused.

Reimplemented from TCPSocket.

Definition at line 56 of file TCPListener.h.

Member Data Documentation

template<class SOCKET, uint8_t MAX_CLIENTS>

SOCKET TCPListener< SOCKET, MAX_CLIENTS >::clients[MAX_CLIENTS]

protected

Definition at line 48 of file TCPListener.h.

---

The documentation for this class was generated from the following file:

• /home/jander/temp/etherdune/TCPListener.h
